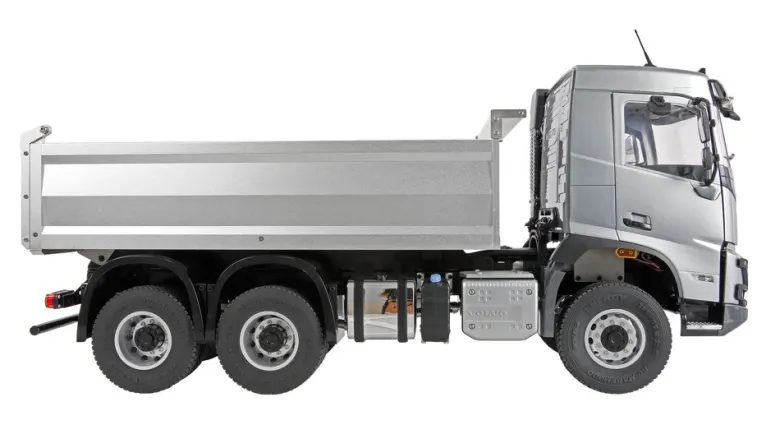

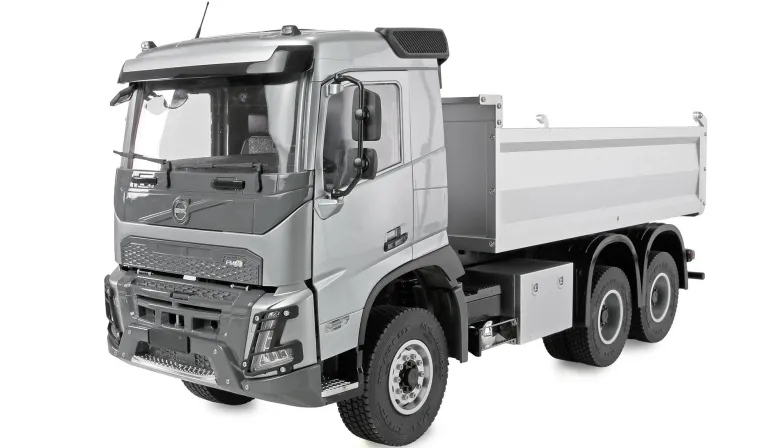

VOLVO FMX E015 DUMP TRUCK 6X4 1/14 RTR SILVER

The Volvo FMX Model E015 is a detailed, electric RC dump truck on a scale of 1:14 that will delight both ambitious model builders and beginners alike. This RTR (Ready-to-Run) version is ready to use straight out of the box and impresses with its robust construction and realistic functions. At the heart of the model is the powerful cargo lift, which can effortlessly handle loads of up to 10 kg at an angle of 50° – ideal for authentic loading and unloading operations on the construction site.

The cab, made of high-quality ABS plastic, not only looks realistic but also features functional details: doors that open reveal a detailed interior, while the cab can be tilted forward for easy access to the electronics and battery compartment. The aluminium and zinc chassis and steel mechanical components guarantee maximum stability and durability – even with intensive use.

The fully proportional steering and acceleration system ensures a precise and realistic driving experience, enabling smooth movements and accurate control commands. An integrated differential mechanism improves traction and stability on a wide variety of terrain, making the Volvo FMX E015 ideally suited for off-road use.

With its combination of robust materials, functional design and user-friendly controls, this RC dump truck is the perfect choice for anyone looking to enter the world of RC construction vehicles or expand their existing fleet. The model is complemented by a powerful battery unit that enables long operating times of up to 30 minutes, as well as a high-quality remote control that makes all functions intuitive to operate.

Whether on the home construction site, in the sandpit or at professional model building events – the Volvo FMX E015 impresses with its power, precision and realism.

Highlights:
Powerful cargo lift: For realistic loading and unloading operations with an incline of up to 50° and a weight of up to 10 kg
Highly detailed design: With opening doors and finely crafted interior
Scale LED lighting: Pre-installed and switchable via the remote control

Additional features:
RTR (ready-to-run) set including remote control, battery and charging cable
Licensed Volvo vehicle E015-003
Aluminium and zinc body and loading area
Steel drive components
Planetary drive gear
Proportional steering and acceleration system
Differentials on all axles
Large lithium-ion battery
Real rubber tyres
Forward-tilting driver’s cab
Doors with magnetic locks
Two speed settings (2.5 & 5 km/h)
Functional front and rear lighting
Metal wheel hubs

Technical data:
Scale: 1:14
Length: 595 mm
Width: 225 mm
Height: 290 mm
Main materials: aluminium, zinc, steel
Weight: 7.6 kg
Wheelbase 1-2 axle: 271 mm
Wheelbase 2-3 axle: 106 mm
Ground clearance: 25 mm
Max. steering angle: 35°
Front wheels: Outer diameter 87 mm
Rear wheels: Outer diameter 87 mm (dual tyres)
Rim diameter: 48 mm
Gearbox: Metal
Front suspension: Metal leaf springs
Rear suspension: Metal leaf springs
Brake: Electronic
Controller: High Class Truck ESC
Motor: 540 High Torque Brushed
Drive system: Cardan
Steering servo: Standard MG
Battery compartment dimensions: 137 x 42 x 24 mm
Battery: Li-Ion 2S 7.4 V 3000 mAh, 10C round cells, XT60 plug, 135x37x19mm, 193g
Running time: 30min
Maximum speed: 5km/h
Remote control: 10-channel, 2.4GHz, 66 frequency channels, max. frequency strength -6.7dBm
Range: 300m
Charger: USB charging cable
Charging time: 1-2 hours

Scope of delivery:
Model
Remote control
Battery
USB charging cable
Attachments
Operating instructions DE/EN

Required accessories:
4x 1.5V AA batteries for the remote control
